1625 Motor 16mm Coreless Brushed Motor Title:
1625 Motor 16mm Coreless Brushed Motor High Speed High Efficiency DC Mini Motor for Robot
1625 Motor 16mm Coreless Brushed Motor Description:
-
Motor model :MS1625 DC Coreless Motor
-
Voltage range:1.5V-12V
-
Speed:5000-40000RPM Customized
-
Rotating speed is constant and can be made as you required.
-
Motor default direction:CW&CCW available
-
Motor Size: φ16*25mm,just 16mm,diamter 25mm length micro coreless dc motor
-
Certification:ISO 9001/IATF16949/ROHS/CE/REACH
-
Shaft size :φ1.5mm ,Length :customized
-
Brush type:Metal brush or Carton Brush
-
Shaft material :Stainless steel or carbon steel
-
Motor life :500Hours -2000Hours
-
Magnetic material:Ordinary magnetic and strong magnetic
-
Suitable to small diameter, low noise and big toque application
-
Widely used in :Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab Automation Electric toothbrush, massager, toy,Model trains ,Robots ,toy ,Vibration Instrument,Medical Devices and Tattoo Machine
-
Lightweight, and features high speed and low inertia. Its design with no core reduces weight and energy loss.
-
It shows quick response and stable performance. Widely used in various fields like electronics and robotics,
-
It offers efficient power output.
-
We can provide samples for your test.
-
Every product must pass 100% quality inspection before shipment
1625 Motor 16mm Coreless Brushed Motor Key attributes:
Speed(RPM)
3000rpm-30000rpm
Continuous Current(A)
10mA-100mA
Place of Origin
Guangdong, China
Model Number
MS1625 coreless motor
Use
Robot ,Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab Automation
Rated Torque
1.5-2.1 mNm (rated)
Construction
Permanent Magnet
Protect Feature
Explosion-proof Shaft tpye
Flat ,d-cut ,round ,with a hole ect
Keywords
coreless brushed motor
Direction of motor
CW &CCW
Efficiency
High Efficiency
Motor type
Micro 1625 Coreless Dc Motor

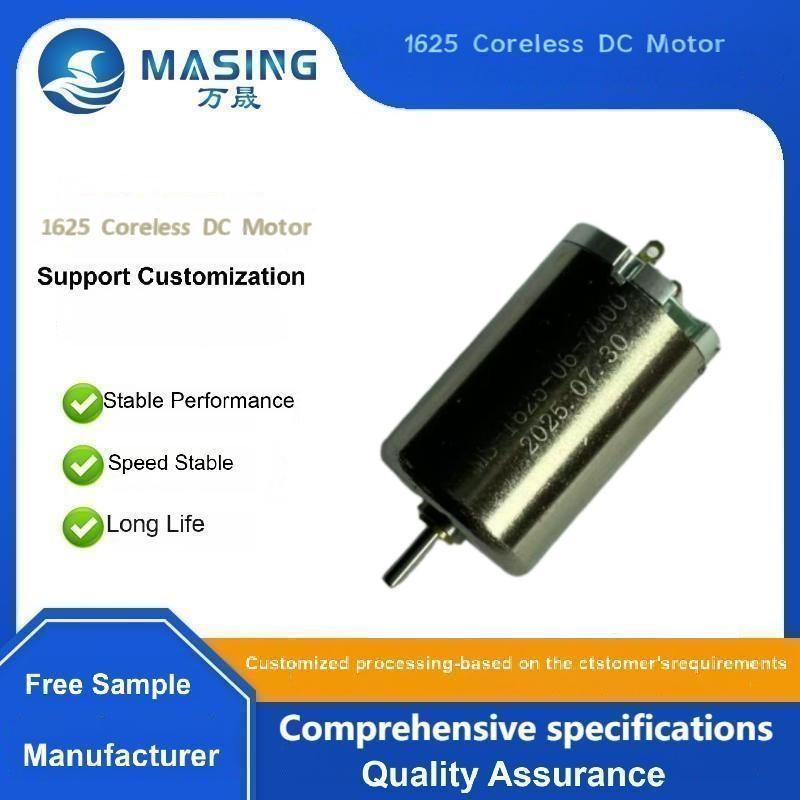

1625 Motor 16mm Coreless Brushed Motor Product Photo:

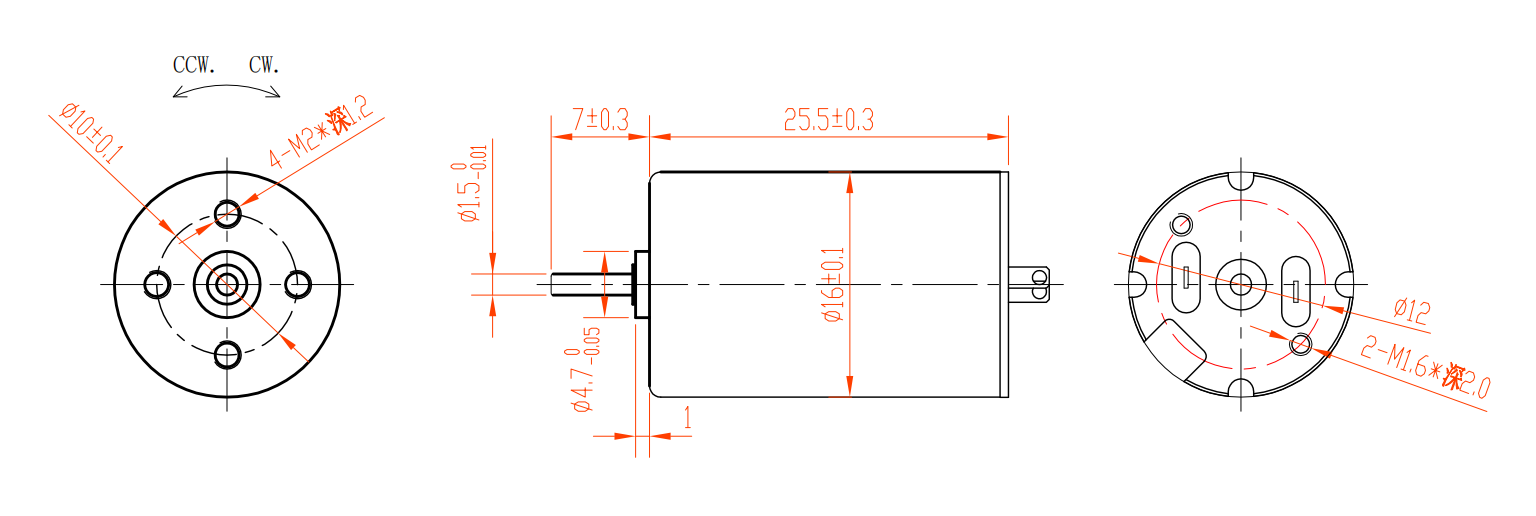

1625 Motor 16mm Coreless Brushed Motor Product Spec:
1625 Micro Coreless DC Motor Typical Applications
Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab AutomationToys,Massager,Beauty apparatus, Cosmetic Instrument, SMART HOME, Robot,Home Appliance, Cosmetic Instrument, SMART HOME, Robot
Remark:Voltage,rated torque,speed,curent.power and shaft sze can becustomized asrequirement.
Packaging and delivery:
Packaging Details
Strong Carton 1000pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 1000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $15/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,
Security monitoring,5G communication,Smart home,
Dental Hand Tools, Humanoid Robot, Small Medical Pumps, Lab Automation
Q1:What's the price?
A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
A2:We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3: What's the delivery time? A3: At the first we have an schedule,the earlier you place order,the fater we finish the production. In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.
Q4: Can you send some samples before the order?
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.
Q5: Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
Q6: What's the payment term? A6: For small amount,we accept 100% payment via paypal. For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
